المنزل > المنتجات > مولد الأوكسجين الصناعي > Powerful Plateau Oxygen Generator: Fast Oxygen Supply for Thin Air

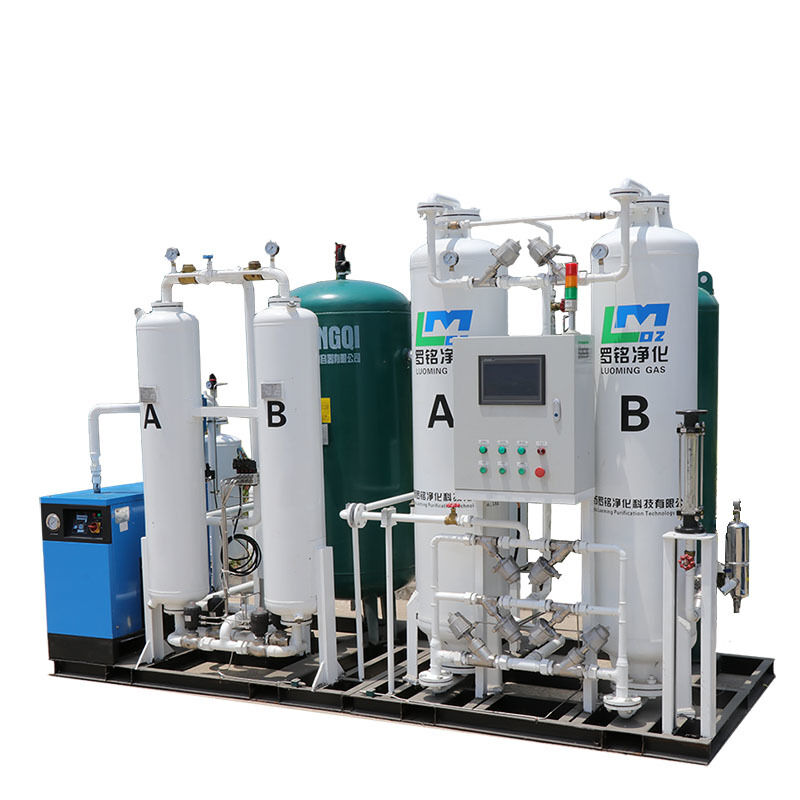

Powerful Plateau Oxygen Generator: Fast Oxygen Supply for Thin Air

تفاصيل المنتج

مكان المنشأ: جيانغسو

اسم العلامة التجارية: Luoming

إصدار الشهادات: ISO CE

رقم الموديل: LMO

شروط الدفع والشحن

الحد الأدنى لكمية: 1 مجموعة

الأسعار: USD15000

تفاصيل التغليف: حالة خشبية

وقت التسليم: 30 يوما

شروط الدفع: الاعتماد المستندي، تي/تي

القدرة على العرض: 100 مجموعة في الشهر

احصل على أفضل سعر
إبراز:

industrial oxygen generator with fast supply,plateau oxygen generator for thin air,powerful oxygen generator with warranty

,

plateau oxygen generator for thin air

,

powerful oxygen generator with warranty

الاسم:
مولد الأوكسجين الهضبة
الصناعات المعمول بها:
الروبيان/مزرعة الأسماك ، إلخ.
مادة:
الفولاذ الكربوني/الفولاذ المقاوم للصدأ
يضمن:
سنة واحدة
عملية:
تلقائي
ميناء:
ميناء الصين
خدمة الحياة:
أكثر من 10 سنوات
تكنولوجيا:
امتزاز تأرجح الضغط (PSA)
المعالجة المخصصة:
نعم
خدمة ما بعد البيع المقدمة:
الدعم الفني للفيديو الدعم عبر الإنترنت
الاسم:
مولد الأوكسجين الهضبة
الصناعات المعمول بها:
الروبيان/مزرعة الأسماك ، إلخ.
مادة:
الفولاذ الكربوني/الفولاذ المقاوم للصدأ
يضمن:
سنة واحدة
عملية:
تلقائي
ميناء:
ميناء الصين
خدمة الحياة:
أكثر من 10 سنوات
تكنولوجيا:
امتزاز تأرجح الضغط (PSA)
المعالجة المخصصة:
نعم
خدمة ما بعد البيع المقدمة:
الدعم الفني للفيديو الدعم عبر الإنترنت
Powerful Plateau Oxygen Generator: Fast Oxygen Supply for Thin Air
Powerful Plateau Oxygen Generator: Fast Oxygen Supply for Thin Air
The high-altitude diffusion oxygen supply system features a simple design with low operation and maintenance costs. Its architecture primarily consists of an oxygen generator (typically a medium-sized molecular sieve oxygen generator), conveying pipelines, and diffusion devices, eliminating the need for complex pressure reduction or monitoring systems. During installation, oxygen production volume is calculated based on space area requirements. The flexible pipeline layout minimizes engineering volume and reduces costs (e.g., hotel room modifications cost significantly less than hospital oxygen supply terminal installations). Maintenance simply requires regular checks of the oxygen generator's operation status and cleaning of diffusion device filters, with no need for specialized medical personnel. Ideal for non-medical high-altitude locations including hotels and office buildings.
Powerful Plateau Oxygen Generator: Fast Oxygen Supply for Thin Air 0
Product Specifications
Model Purity Flow Outlet
LMO-193±2%1Nm3/hRegular outlet pressure 1-5Mpa adjustable
LMO-593±2%5Nm3/h
LMO-1093±2%10Nm3/h
LMO-1593±2%15Nm3/h
LMO-2093±2%20Nm3/h
LMO-2593±2%25Nm3/h
LMO-3093±2%30Nm3/h
LMO-4093±2%40Nm3/h
LMO-5093±2%50Nm3/h
LMO-6093±2%60Nm3/h
LMO-7093±2%70Nm3/h
LMO-8093±2%80Nm3/h
LMO-9093±2%90Nm3/h
LMO-10093±2%100Nm3/h
LMO-11093±2%110Nm3/h
LMO-12093±2%120Nm3/h
LMO-13093±2%130Nm3/h
LMO-14093±2%140Nm3/h
LMO-15093±2%150Nm3/h
LMO-18093±2%180Nm3/h
LMO-20093±2%200Nm3/h
Powerful Plateau Oxygen Generator: Fast Oxygen Supply for Thin Air 1
PSA Technology Introduction
PSA (Pressure Swing Adsorption) Technology represents a revolution in non-cryogenic air separation and oxygen generation. This advanced system uses a special grade of Zeolite Molecular Sieve (ZMS) for efficient oxygen production.
  • The compressed air passes through a Twin Tower PSA module with automatic changeover valves
  • After processing through a Refrigerated Dryer, the air is completely dried
  • The dried compressed air contacts the Zeolite Molecular Sieves (ZMS) bed
  • ZMS has the unique property of preferential adsorption of nitrogen molecules
  • The resulting oxygen gas is sent to a surge vessel with maintained minimum pressure via a Back Pressure Regulator
Powerful Plateau Oxygen Generator: Fast Oxygen Supply for Thin Air 2 Powerful Plateau Oxygen Generator: Fast Oxygen Supply for Thin Air 3
Frequently Asked Questions
What is the terms of payment?
T/T, L/C, Western Union etc.
How long is your delivery time?
Generally it is 10-50 working days depending on your order.
How to get a prompt quotation?
When you send us inquiry, please kindly provide the following technical information:
  • O2 Flow rate: ____Nm3/h
  • O2 Purity: ____%
  • O2 Discharge pressure: ____Bar
  • Voltages and Frequency: _____V/PH/HZ
  • Application or use for which industry
We will recommend the most suitable equipment according to your specific requirements.
